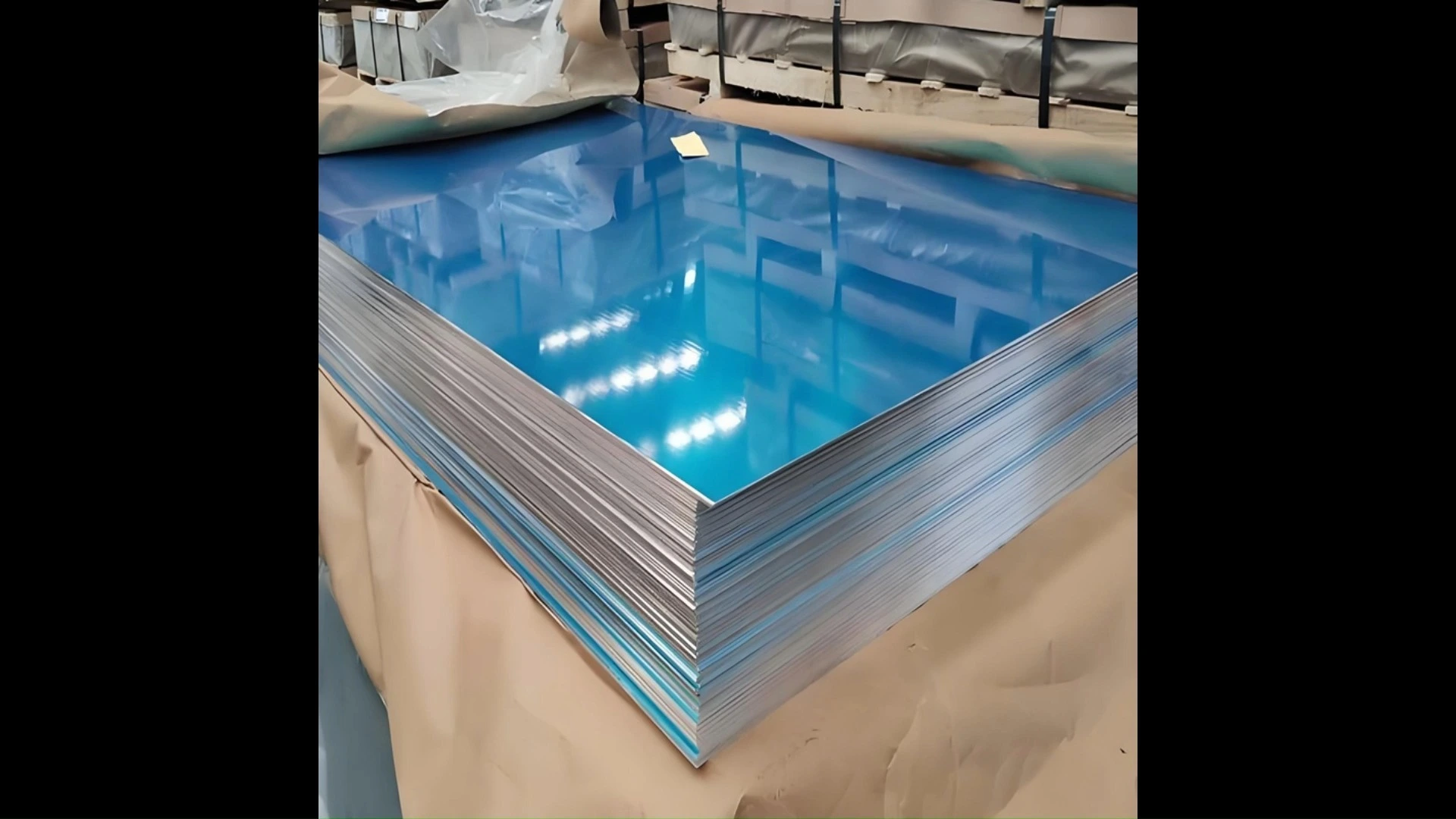

5454 Aluminum Plate for Oil Tank Trucks, Pressure Vessels, and Seawater Desalination
5454 aluminum plate is an aluminum alloy material with a variety of excellent properties and is widely used in many industrial fields.
Main Features of 5454 aluminum plate
High strength: 5454 aluminum plate has high yield strength and tensile strength, and is suitable for manufacturing structural parts that need to withstand load and pressure.
Strong corrosion resistance: Its surface is not easy to form an oxide layer and has good resistance to corrosive media such as seawater and chloride. It is suitable for marine facilities, ships and other fields.
Good plasticity: easy to carry out processing such as cutting, bending, punching and welding, and can be easily processed into parts of various shapes and structures.
Rich surface treatment processes: a variety of surface treatment processes such as anodizing, powder spraying, and fluorocarbon spraying can be performed to meet the needs of different occasions.
5454 aluminum plate has good corrosion resistance and is highly resistant to corrosion in seawater and chloride environments.
This makes it widely used in shipbuilding, marine engineering, oil tank vehicles, chemical equipment and other fields.
The aluminum plate has good welding performance and can be connected and processed by common welding methods (such as argon arc welding, arc welding, etc.)
5454 aluminum plate has good plasticity and processing performance, can be cold and hot processed, and is easy to be formed and processed into various complex shapes.
The aluminum plate has good low-temperature performance and is suitable for use under low-temperature working conditions, such as cryogenic storage tanks, liquefied natural gas (LNG) storage tanks, etc.
5454 Aluminum plate Chemistry Composition & Mechanical Properties & Features:
| Element | Si | Fe | Cu | Mn | Mg | Cr | Ti | Zn | Al |
|---|---|---|---|---|---|---|---|---|---|
| Standard Value | ≤0.25 | ≤0.40 | ≤0.10 | 0.50-1.0 | 2.4-3.0 | 0.05-0.20 | ≤0.20 | ≤0.25 | Remainder |
| Actual Value | 0.06 | 0.28 | 0.03 | 0.87 | 2.77 | 0.09 | 0.02 | 0.02 | Remainder |
Mechanical Property of 5454 H32 aluminum Plate
| Alloy & Temper | Tensile Strength Mpa | Elongation（%） | Yield Strength Mpa | Surface |
|---|---|---|---|---|
| 5454 H32 | 250-305 | >8 | >180 | Qualified |
| 5454 O | 215-275 | >18 | 109 | Qualifie |
Application of 5454 Aluminum Plate
Construction industry: used to make building components such as exterior wall panels, roof panels, door and window frames, etc. It has the advantages of beauty, durability, and corrosion resistance.
Automotive industry: used to manufacture automobile bodies, engine brackets, chassis and other components to reduce body weight and improve fuel economy.
Shipbuilding industry: used to manufacture hull structures, decks, cabin partitions, etc., with good sealing and seawater corrosion resistance.
Aerospace: Due to its light weight, high strength and good corrosion resistance, it is also used in the manufacturing of aircraft, rockets and other aerospace vehicles.
Other fields: It is also widely used in oil tank trucks, pressure vessels, seawater desalination equipment and other fields.
Available aluminum sheet grade
1000 series: 1050,1060,1070,1080,1100,1145,1200,1235, etc.
2000 series: 2014,2017,2018,2024,2025,2219, 2219,2618a etc.
3000 series: 3003,3004,3102,3104,3105,3005, etc.
4000 series: 4032,4043, 4017, etc
5000 series: 5005,5052,5454,5754,5083,5086,5182,5082, etc.
6000 series: 6061,6063,6262,6101, etc
7000 series: 7072,7075,7003 etc
8000 series: 8011, etc.
Temper of aluminum sheet: O, H, W, F, T
H: H12, H14, H16, H18, H19, H22, H24, H26, H32, H34, H111, H112, H114, H116
T: T0-T651
5454 aluminum plate is widely used in ships, marine engineering, oil tankers, pressure vessels, automobile bodies and other fields. Its high strength and excellent corrosion resistance make it an ideal material for manufacturing ship structures, oil tank vehicle fuel tanks, chemical equipment containers and other components.
5454 aluminum plate is a high-performance aluminum alloy material with many excellent properties.
5454 aluminum plate is mainly composed of aluminum, magnesium and a small amount of chromium, of which the magnesium content is approximately between 4.5% and 5.5%.
5454 aluminum plate has high strength. The tensile strength is generally between 200-260 MPa, the compressive strength is about 180 MPa, and the yield strength is generally within the range of 140-200 MPa.
This enables it to meet engineering applications that require high material strength, such as ship structures, pressure vessels, etc.
parameter
|
Thickness |
0.2-6.0mm |
|
Width |
100-2400mm |
|
Length |
200-11000mm |
|
Mother coil |
CC or DC |
|
Weight |
About 2mt per pallet for general size |
|
MOQ |
5ton per size |
|
Protection |
paper inter layer, white film, blue film, black-white film, micro bound film, according to your requirement. |
|
Surface |
clean and smooth, no bright speck, corrosion, oil, slotted, etc. |
|
Standard product |
GBT3880, JIS4000, EN485, ASTM-B209 |
|
Delivery time |
about 30days after receiving the deposit |
|
Payment |
T/T, L/C at sight |
|
Trading terms |
FOB, CIF, CFR |
