7075 F/T6/T651/T7351 Aluminum Bar Rod Supplier
7075 aluminum bar is a high-strength, high-performance aluminum alloy material.
The following is a detailed introduction:
1. Chemical composition
The main alloy elements of 7075 aluminum bar include zinc (Zn), magnesium (Mg), copper (Cu), etc. The specific chemical composition (expressed in percentage) is as follows:
Silicon (Si): 0.40%
Iron (Fe): 0.50%
Copper (Cu): 1.2%~2.0%
Manganese (Mn): ≤0.30%
Magnesium (Mg): 2.1%~2.9%
Chromium (Cr): 0.18%~0.28%
Zinc (Zn): 5.1%~6.1%
Titanium (Ti): ≤0.20%
Aluminum (Al): balance
Other elements: single element content ≤ 0.05%, total content of all other elements ≤ 0.15%
7075 aluminum alloy bar rod physical properties
| Material | Temper | Size (") | Tensile Strength (ksi) | Yield Strength (ksi) | Elongation in 2" % |
| Alloy 7075 Bar | T651 | - | 77 | 66 | 7 |
| Alloy 7075 Bar | T7351 | <4" | 68 | 56 | 10 |
| Alloy 7075 Bar | T73511 | <0.25 | 68 | 58 | 7 |
| Alloy 7075 Bar | T73511 | 0.25 - 1.5 | 70 | 61 | 8 |
| Alloy 7075 Bar | T73511 | 1.5-3.0 | 69 | 59 | 8 |
| Alloy 7075 Bar | T6511 | <0.25 | 78 | 70 | 7 |
| Alloy 7075 Bar | T6511 | 0.25-0.5 | 81 | 73 | 7 |
| Alloy 7075 Bar | T6511 | 0.5-3.0 | 81 | 72 | 7 |
7075 aluminum bar is one of the strongest alloys commercially available. Its strength is far better than mild steel and it is suitable for various occasions with high strength requirements.
7075 aluminum bar also has good mechanical properties and anode reaction properties, ensuring its reliability and durability in various mechanical applications.
7075 aluminum bar is easy to carry out various machining operations, such as cutting, drilling, turning, etc., and has good wear resistance, and can maintain high precision and surface quality during the manufacturing process.
7075 aluminum bar has excellent corrosion resistance and oxidation resistance, and can be used for a long time in harsh environments without being easily damaged.
Product specifications
Specification: ASTM B221, B211, B565, B316, AMS 4121 2014
Standard: ASTM, ASME, AMS, GB/T, JIS
Temper: O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Length: 100 mm To 3000 mm Long & Above
Size: 5 mm To 500 mm
Diameter: 0.1-600mm
MOQ: 5ton per size
Surface: clean and smooth, no bright speck, corrosion, oil, slotted, etc.
Delivery time: about 30days after receiving the deposit
Payment: T/T, L/C at sight
Trading terms: FOB, CIF, CFR
7075 T651 aluminum round bar also has the characteristics of easy processing and good wear resistance, which makes it widely used in aerospace, mold processing, mechanical equipment, tooling fixtures and other fields. Especially in the aerospace field, 7075 T651 aluminum rod has become one of the important structural materials
parameter
|
1000 series |
1050,1060,1070,1080,1100,1145,1200,1235, etc. |
|
2000 series |
2014,2017,2018,2024,2025,2219, 2219,2618a etc. |
|
3000 series |
3003,3004,3102,3104,3105,3005, etc. |
|
4000 series |
4032,4043, 4017, etc |
|
5000 series |
5005,5052,5454,5754,5083,5086,5182,5082, etc. |
|
6000 series |
6061,6063,6262,6101, etc |
|
7000 series |
7072,7075,7003 etc |
|
8000 series |
8011, etc. |

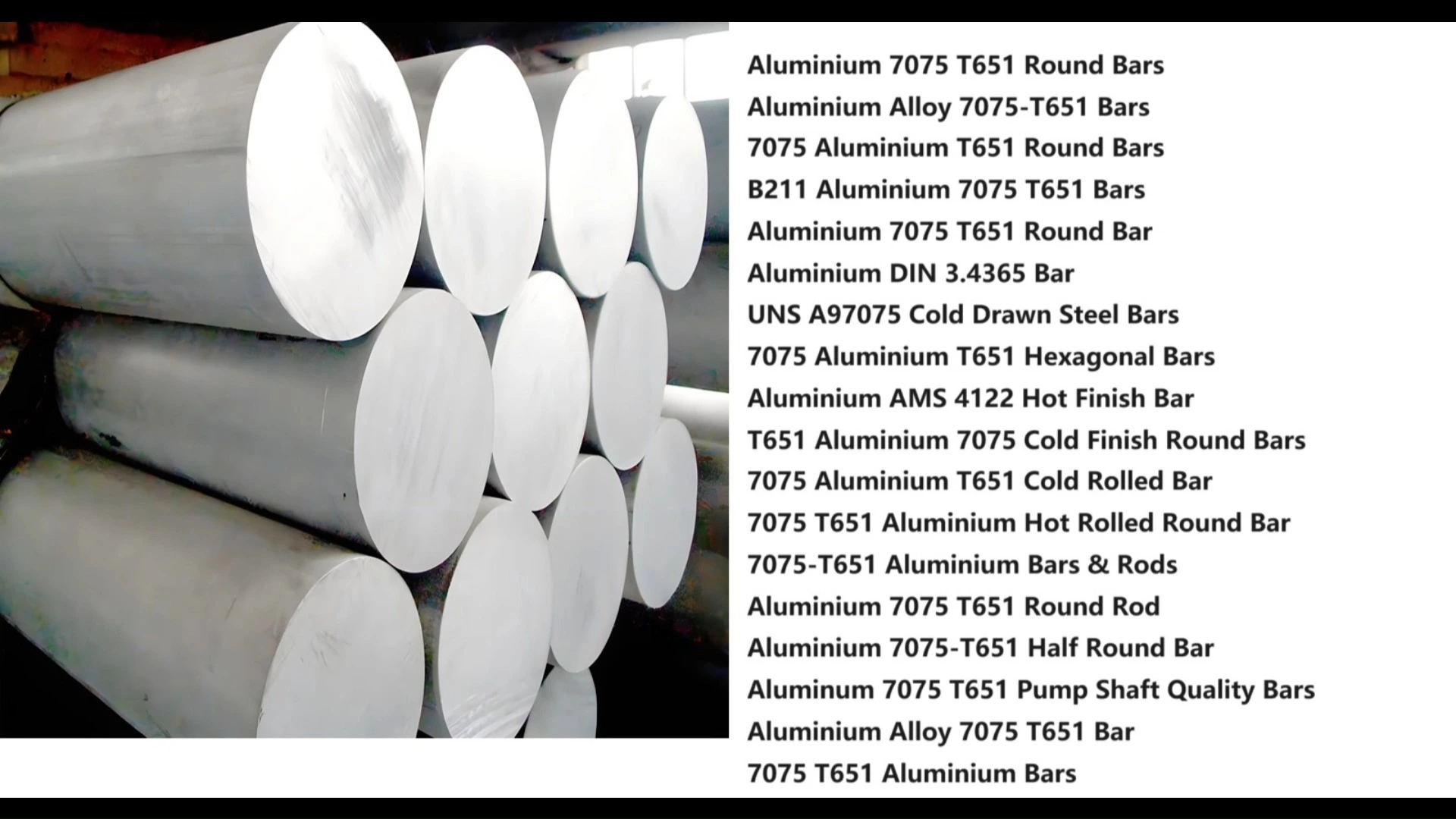

Product Display
